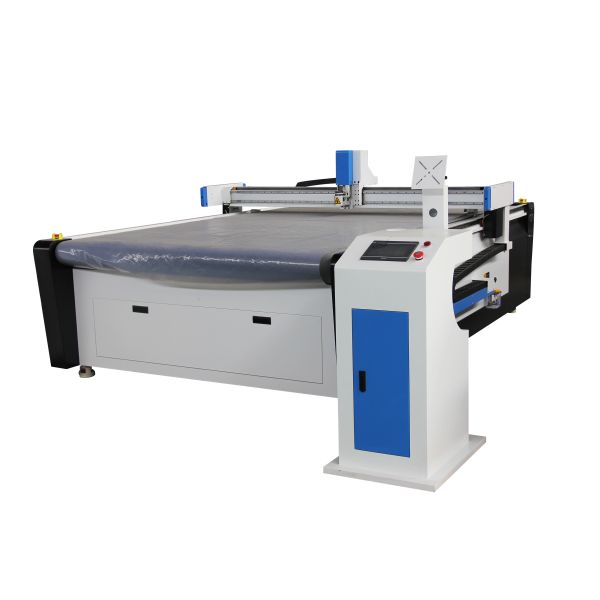

PVC And Leather Oscillating Knife Blade CNC 1600x2500mm

Name: PVC And Leather Oscillating Knife Blade CNC 1600x2500mm
Brand: DWIN
Price: 9000 USD

Quality PVC And Leather Oscillating Knife Blade CNC 1600x2500mm for sale

Brand Name : DWIN

Model Number : DW1625

Certification : CE FDA SGS

Place of Origin : China

MOQ : 1set

Price : 9000usd-12000usd

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets / month

Delivery Time : 8-10 working days

Packaging Details : Plywood box

working area : 1600*2500mm

Table : Vacuum table

Motor : Leadshine stepper motor and driver

Automatic feeding : Including

Control system : ZhongRui

Rails : Taiwan Hiwin Liner guide rails

Transmission : Taiwan Rack Transmission

Warranty : 24 months

knife : Oscillating knife cutting head

Contact Now

CNC oscillating knife cutting machine for leather and PVC

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2. The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.

3. The anti-collision and the built-in auto-sensing devices ensure the security of oscillating knife leather cutting machine.

V cut knife Cutting Machine with projector

Oscillating Knife Cutting Machine for Shoes

auto feeding cnc oscillating knife cutting machine

PVC And Leather Oscillating Knife Blade CNC 1600x2500mm

Technical parameter:

Working size		2500X1600X40mm(LWH)
Package size		3900X2260X1600mm(LWH)
Vacuum Pump		9KW
Voltage		380V+10%
Application materials		Leather,pvc,and the other flexible materials
Compatible format		DXF,PLT,SVG,etc
Display way		English LED touch screen
Machine structure		Welding of thickened square tube (five milling machining center)
Machine Table		Thickened aluminum sealing box(Honeycomb)
Gantry structure		Thickened aviation aluminum by machining center
Working Table cloth		2.5mm/4mm felt
Material fixing method		4-zone vacuum adsorption
Control system		Ruida LCD Touch Screen
Repeatability		±0.1mm
Flatness of the table		±0.2mm
Transmission		High-precision 20#/15# guide rail, 1.5m helical rack
Transmission cable		CNC dedicated high-flexible shielded cable
Data transfer way		Intel
Cutting head		High-power vibrating knife Single-head
Driving system		Taiwan Delta servo driver and motor
Security configuration		Intelligent anti-collision switch, four-corner emergency stop button
Cutting speed		100-1500mm/s(According to materials)
Total Power		12KW

Machine parts

PVC And Leather Oscillating Knife Blade CNC 1600x2500mm

Samples

PVC And Leather Oscillating Knife Blade CNC 1600x2500mm
